Lapeer

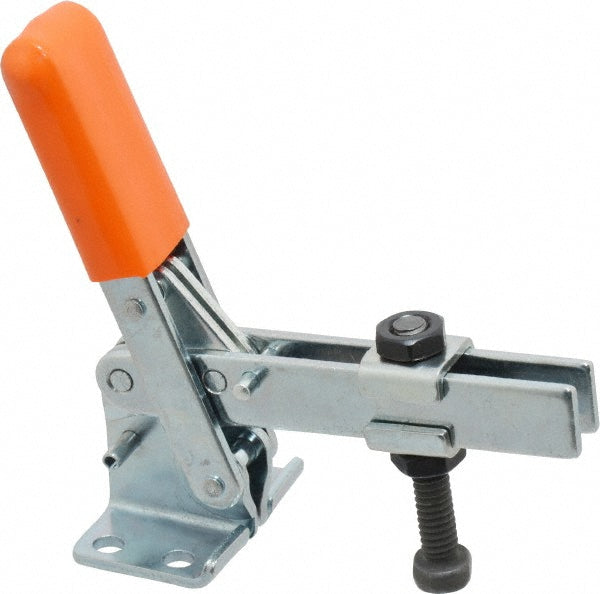

Toggle Clamp - Lapeer V-100
MFR# V-100
$12.45List $15.63
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer V-100 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees95
Bar styleU-Bar
Bar thickness0.8800
Bar width in1/4
Base length in1-1/16
Base styleFlanged
Base width in1.4375
Front of base to tip of toggle bar2.0000
Front of base to toggle tip2.00in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees63
Handle orientationVertical
Handle styleStraight
Height under bar in7/8
Holding capacity lb100.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.5; 1/2
MaterialCarbon Steel
Mounting hole diameter0.2030
Number of mounting holes4
Overall height in3-3/4
Overall length3.3438
Spindle includedYes
Spindle length1-7/8
Spindle thread size1/4-20
Spindle travel in1.2500
Width distance between mount holes in1-1/16
