Lapeer

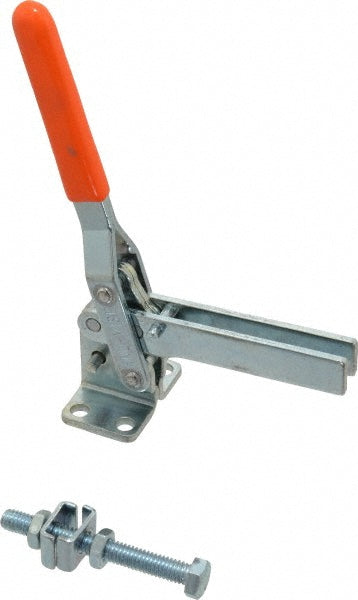

Toggle Clamp - Lapeer V-200
MFR# V-200
$16.95List $21.28
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer V-200 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees110
Bar styleU-Bar
Bar thickness1.2500
Bar width in5/16
Base length in1-1/4
Base styleFlanged
Base width in1.8750
Front of base to tip of toggle bar in2-5/8
Front of base to toggle tip2.62in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Height under bar in1-1/4
Holding capacity kg90.72
Holding capacity lb200.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.75; 3/4
MaterialCarbon Steel
Mounting hole diameter0.2660
Number of mounting holes4
Overall height in6-9/16
Overall length in4-3/16
Spindle length2-7/8
Spindle thread size5/16-18
Spindle travel in1.8750
Width distance between mount holes in1-3/8
