Toggle Clamp - Lapeer V-200(SS)
MFR# V-200(SS)
$46.53List $57.39
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

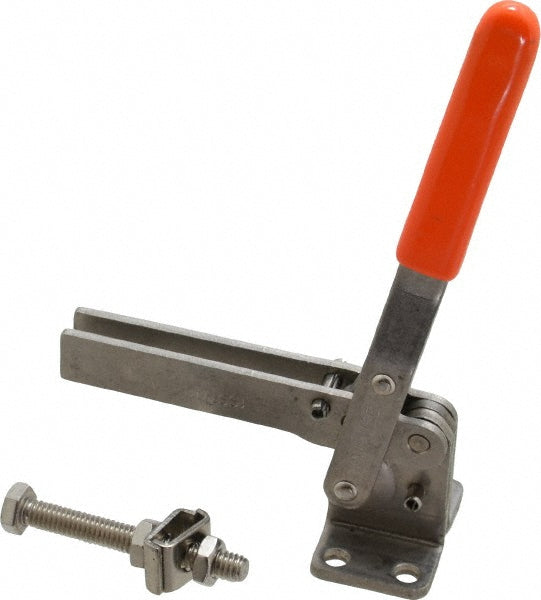

The Lapeer V-200(SS) is a stainless steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees110
Bar styleU-Bar
Bar thickness1.2500
Bar width in5/16
Base length in1-1/4
Base styleFlanged
Base width in1.8750
Front of base to tip of toggle bar in2-5/8
Front of base to toggle tip2.62in
Handle colorOrange
Handle materialStainless Steel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Height under bar in1-1/4
Holding capacity lb200.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.75; 3/4
MaterialStainless Steel
Mounting hole diameter0.2660
Number of mounting holes4
Overall height in6-9/16
Overall length in4-3/16
Spindle length2-7/8
Spindle thread size5/16-18
Spindle travel in1.8750
Width distance between mount holes in1-3/8
