Lapeer

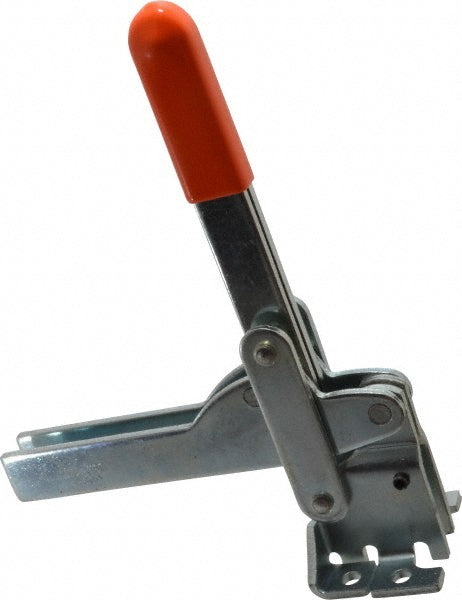

Toggle Clamp - Lapeer V-800
MFR# V-800
$44.64List $55.06
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer V-800 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees115
Bar styleU-Bar
Bar thickness2.1600
Bar width in1/2
Base length in2-3/16
Base styleFlanged
Base width in2.6875
Front of base to tip of toggle bar in4-3/4
Front of base to toggle tip4.75in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees150
Handle orientationVertical
Handle styleStraight
Height under bar in2-1/64
Holding capacity kg362.87
Holding capacity lb800.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.875; 7/8
MaterialCarbon Steel
Mounting hole diameter0.3280
Number of mounting holes4
Overall height in9-13/16
Overall length in7-7/16
Spindle length3-3/8
Spindle thread size1/2-13
Spindle travel in2.7500
Width distance between mount holes2.0000
