Lapeer

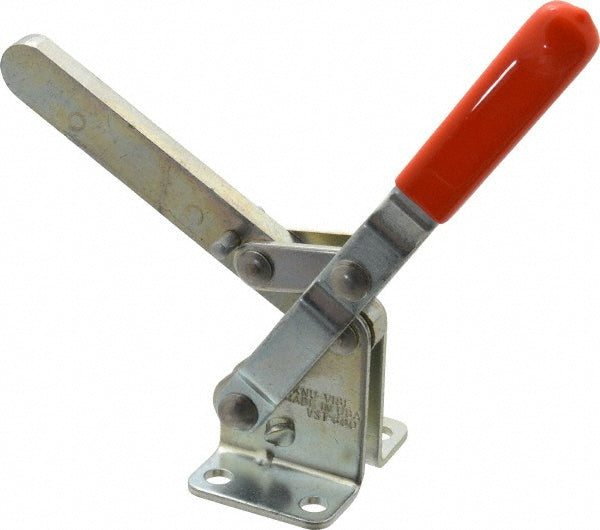

Toggle Clamp - Lapeer VST-600
MFR# VST-600
$20.07List $25.19
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer VST-600 is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees106
Bar styleSolid
Bar thickness1.6900
Bar width0.3100
Base styleFlanged
Base width in2.5000
Front of base to tip of toggle bar3.5900
Front of base to toggle tip3.59in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleStraight
Height under bar1.6900
Holding capacity lb700.00
Length distance between mount holes in1.25
MaterialCarbon Steel
Mounting hole diameter0.3300
Number of mounting holes4
Overall height7.4400
Overall length5.4700
Spindle length3-1/2
Width distance between mount holes1.7500
