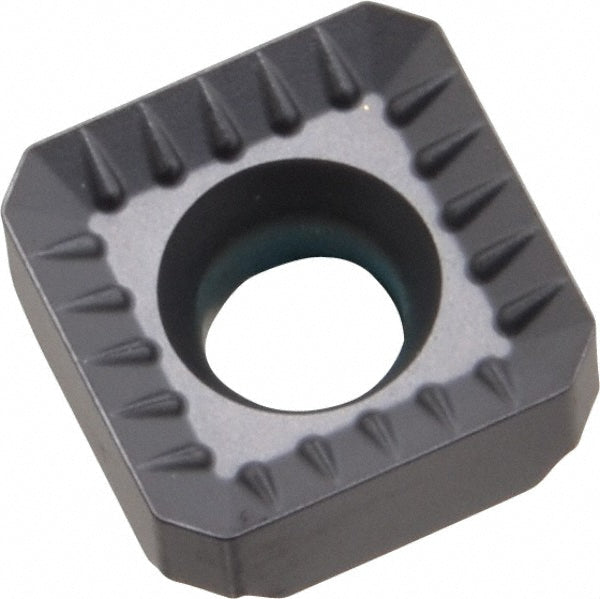

SNKX 1205 AN-TR LCP40M Solid Carbide Insert, Grade LCP40M, TiAIN - LMT 1052248

LMT

SNKX 1205 AN-TR LCP40M Solid Carbide Insert, Grade LCP40M, TiAIN - LMT 1052248

MFR# 1052248ISO/ANSI# SNKX 1205 AN-TR LCP40MSeries SNKX

$18.17List $23.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeLCP40M
MaterialSolid Carbide
CoatingTiAIN

Description

The LMT 1052248 is a SNKX 1205 AN-TR LCP40M solid carbide indexable insert, grade LCP40M, TiAIN coated. Suited for steel.

Specifications

Ansi codeSNKX 1205 AN-TR LCP40M
Chip breakerTR
Coating finishTiAIN
Coating processPVD
Corner radius in5/64
Cutting edge effective length0.5000
Hole diameter0.2047
Included angle degree30
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNKX
Iso codeSNKX 1205 AN-TR LCP40M
Length in1/2
Manufacturers catalog number1052248
Manufacturer gradeLCP40M
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel
Rake angle30
Relief angle0
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
