SNHX 1205 AE-IN 1187-18 TR-IN LCM45M Solid Carbide Insert, Grade LCM45M, TiAlN - LMT 1067543

LMT

SNHX 1205 AE-IN 1187-18 TR-IN LCM45M Solid Carbide Insert, Grade LCM45M, TiAlN - LMT 1067543

MFR# 1067543ISO/ANSI# SNHX 1205 AE-IN 1187-18 TR-IN LCM45MSeries SNHX

$20.16List $25.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeLCM45M
MaterialSolid Carbide
CoatingTiAlN

Description

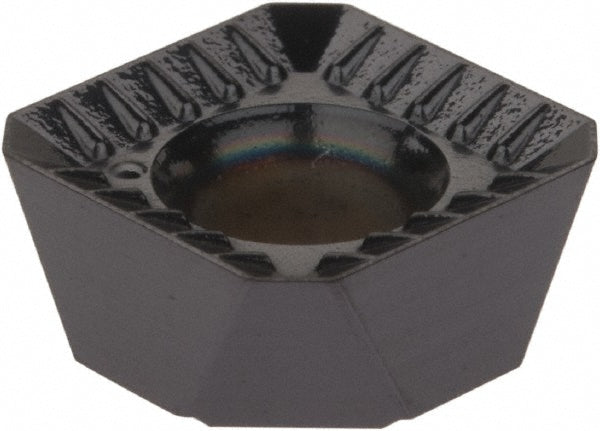

The LMT 1067543 is a SNHX 1205 AE-IN 1187-18 TR-IN LCM45M solid carbide indexable insert, grade LCM45M, TiAlN coated. Suited for stainless steel.

Specifications

Ansi codeSNHX 1205 AE-IN 1187-18 TR-IN LCM45M
Chip breakerAE
Coating finishTiAlN
Coating processPVD
Corner radius in5/64
Cutting edge effective length0.5000
Hole diameter0.2047
Included angle degree30
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNHX
Iso codeSNHX 1205 AE-IN 1187-18 TR-IN LCM45M
Length in1/2
Manufacturers catalog number1067543
Manufacturer gradeLCM45M
Material applicationStainless Steel; Steel
Material gradeC5
Multi use toolNo
Number of cutting edges4
Primary workpiece materialStainless Steel
Rake angle30
Relief angle0
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
