LMT

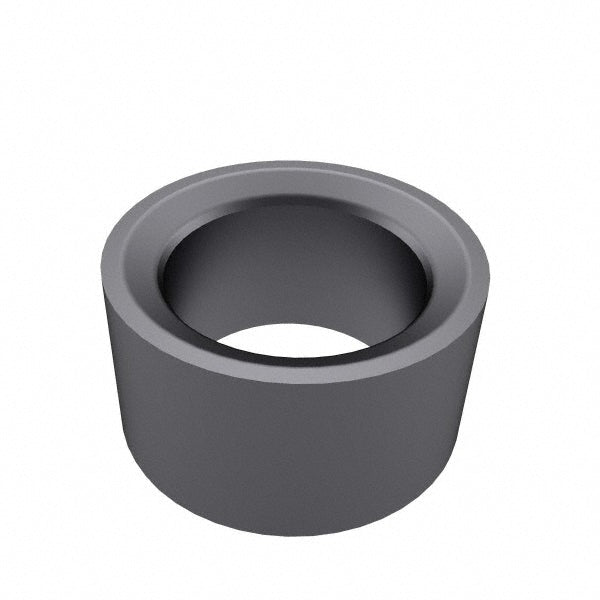

RCHX 1205 MO-T 1195-23 LCP40M Solid Carbide Insert, Grade LCP40M, TiAIN - LMT 1068385
MFR# 1068385ISO/ANSI# RCHX 1205 MO-T 1195-23 LCP40MSeries RCHX
$26.51List $34.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeLCP40M
MaterialSolid Carbide
CoatingTiAIN
Description
The LMT 1068385 is a RCHX 1205 MO-T 1195-23 LCP40M solid carbide indexable insert, grade LCP40M, TiAIN coated. Suited for steel.
Specifications
Ansi codeRCHX 1205 MO-T 1195-23 LCP40M
Chip breakerT
Coating finishTiAIN
Coating processPVD
Cutting edge effective length0.4720
Hole diameter0.2047
Included angle degree23
Inscribed circle0.4685
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1205
Insert styleRCHX
Iso codeRCHX 1205 MO-T 1195-23 LCP40M
Manufacturers catalog number1068385
Manufacturer gradeLCP40M
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Multi use toolNo
Primary workpiece materialSteel
Rake angle23
Relief angle7
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.4724
