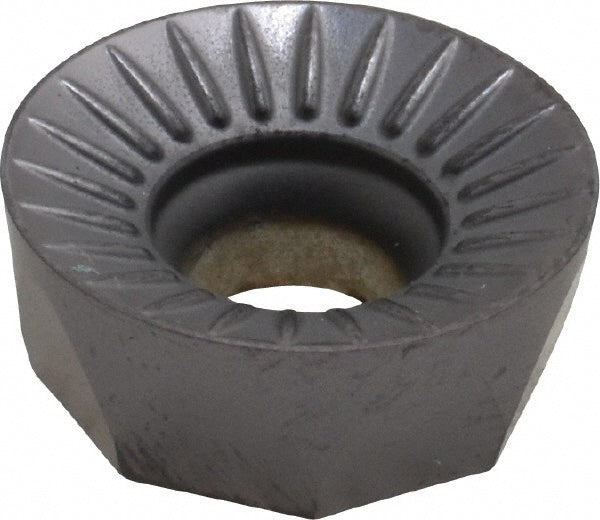

RCKX1606MO-TR LCKP10M Solid Carbide Insert, Grade LCKP10M, Coated - LMT 1068435

LMT

RCKX1606MO-TR LCKP10M Solid Carbide Insert, Grade LCKP10M, Coated - LMT 1068435

MFR# 1068435ISO/ANSI# RCKX1606MO-TR LCKP10MSeries RCKX

$19.68List $25.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeLCKP10M
MaterialSolid Carbide
CoatingCoated

Description

The LMT 1068435 is a RCKX1606MO-TR LCKP10M solid carbide indexable insert, grade LCKP10M, Coated coated. Suited for cast iron.

Specifications

Ansi codeRCKX1606MO-TR LCKP10M
Chip breakerTR
Coating finishCoated
Coating processPVD
Cutting edge effective length0.6300
Hole diameter0.2283
Included angle degree23
Inscribed circle0.6260
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1606
Insert styleRCKX
Iso codeRCKX1606MO-TR LCKP10M
Manufacturers catalog number1068435
Manufacturer gradeLCKP10M
Material applicationCast Iron; Steel
Material gradeC2; C3
Multi use toolNo
Number of cutting edges8
Primary workpiece materialCast Iron
Rake angle23
Relief angle7
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.6299
