LMT

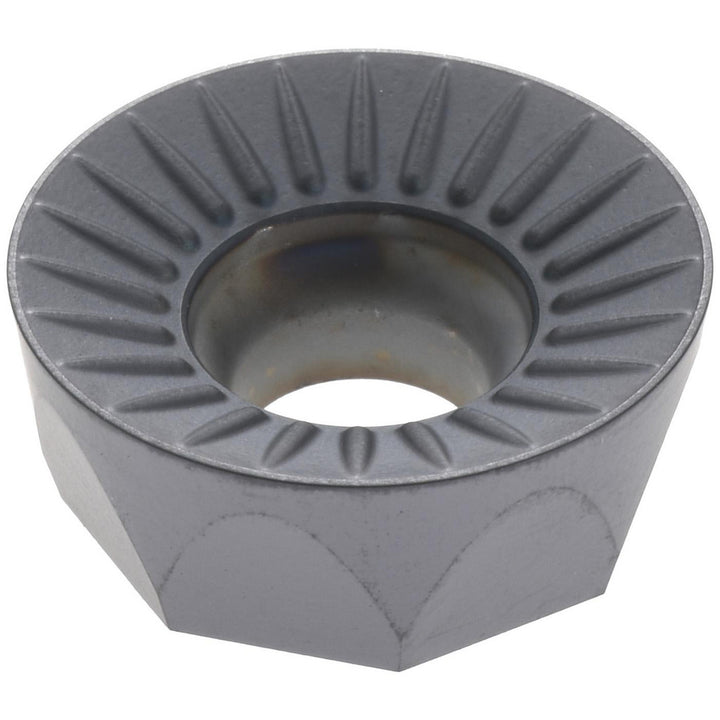

RCKX1606MO-TR LC240T Solid Carbide Insert, Grade LC240T - LMT 60696
MFR# 60696ISO/ANSI# RCKX1606MO-TR LC240TSeries RCKX
$36.22List $46.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeLC240T
MaterialSolid Carbide
Description
The LMT 60696 is a RCKX1606MO-TR LC240T solid carbide indexable insert, grade LC240T. Suited for cast iron, non-ferrous metal.
Specifications
Ansi codeRCKX1606MO-TR LC240T
Chip breakerTR
Coating processPVD
Cutting edge effective length0.6300
Hole diameter0.2283
Included angle degree23
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1606
Insert styleRCKX
Iso codeRCKX1606MO-TR LC240T
Manufacturers catalog number60696
Manufacturer gradeLC240T
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeC5; C6
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle23
Relief angle7.00
Secondary workpiece materialStainless Steel; Steel
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.6299
