LMT

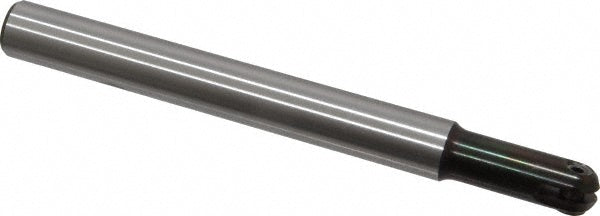

1/2" Indexable End Mills - LMT 6121396
MFR# 6121396Series EBG
$216.71
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The LMT 6121396 indexable end mills. Series EBG.
Specifications
Compatible insert styleWPR 0500
Cutting diameter in1/2
Head length1.2600
Insert holding methodScrew
Maximum depth of cut1.2600
Neck diameter0.4100
Number of ball nose inserts1
Number of inserts1
Overall length5.1200
Shank diameter in1/2
Shank typeStraight
Tapered neckNo
Toolholder styleEBG-R
Tool applicationMilling
Tool materialHigh Speed Steel
Weldon flatNo
