LMT

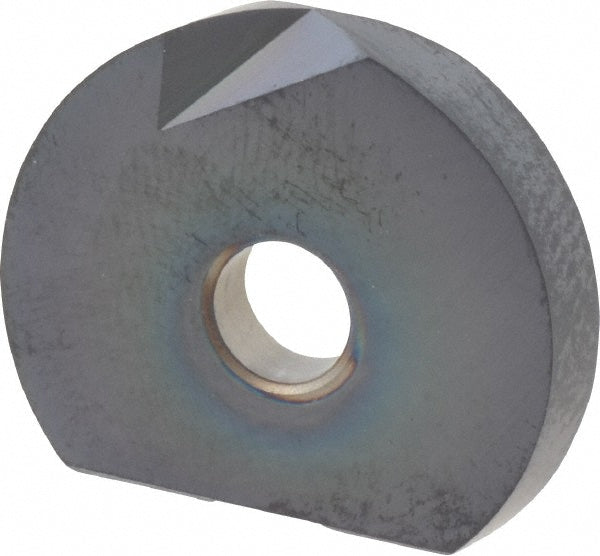

WPR 1000-N LC610T Solid Carbide Insert, Grade LC610T, TiAlN - LMT 6122860
MFR# 6122860ISO/ANSI# WPR 1000-N LC610TSeries WPR
$57.16List $73.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeBall Nose Rounded Tip
GradeLC610T
MaterialSolid Carbide
CoatingTiAlN
Description
The LMT 6122860 is a WPR 1000-N LC610T solid carbide indexable insert, grade LC610T, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeWPR 1000-N LC610T
Chip breakerN
Coating finishTiAlN
Coating processPVD
Cutting edge effective length10.0000
Inscribed circle in1
Inscribed circle range1.0000+
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose Rounded Tip
Insert size10
Insert size code1000
Insert styleWPR
Iso codeWPR 1000-N LC610T
Manufacturers catalog number6122860
Manufacturer gradeLC610T
Material applicationCast Iron; Steel
Material gradeC2; C3
Multi use toolNo
Number of cutting edges2
Primary workpiece materialCast Iron
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsISO
Thickness0.1600
Thickness range0.1500 to 0.1750
Width in1
