LMT

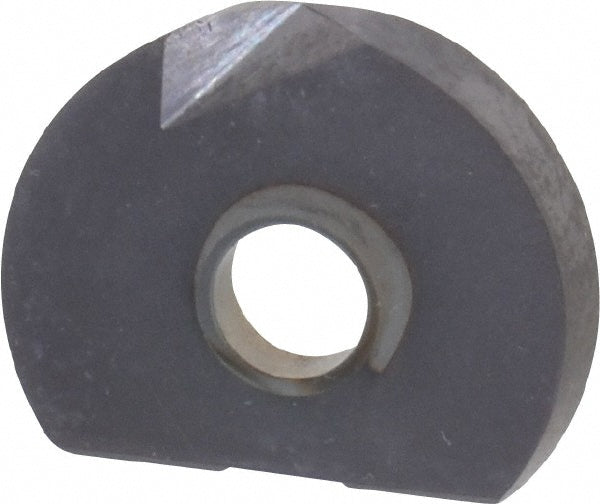

WPR 0750-N LC610T Solid Carbide Insert, Grade LC610T, TiAlN - LMT 6122869
MFR# 6122869ISO/ANSI# WPR 0750-N LC610TSeries WPR
$45.61List $58.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeBall Nose Rounded Tip
GradeLC610T
MaterialSolid Carbide
CoatingTiAlN
Description
The LMT 6122869 is a WPR 0750-N LC610T solid carbide indexable insert, grade LC610T, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeWPR 0750-N LC610T
Chip breakerN
Coating finishTiAlN
Coating processPVD
Cutting edge effective length0.7500
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose Rounded Tip
Insert size07
Insert size code0750
Insert styleWPR
Iso codeWPR 0750-N LC610T
Manufacturers catalog number6122869
Manufacturer gradeLC610T
Material applicationCast Iron; Steel
Material gradeC2; C3
Multi use toolNo
Number of cutting edges2
Primary workpiece materialCast Iron
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsISO
Thickness0.1200
Thickness range0.1000 to 0.1250
Width in3/4
