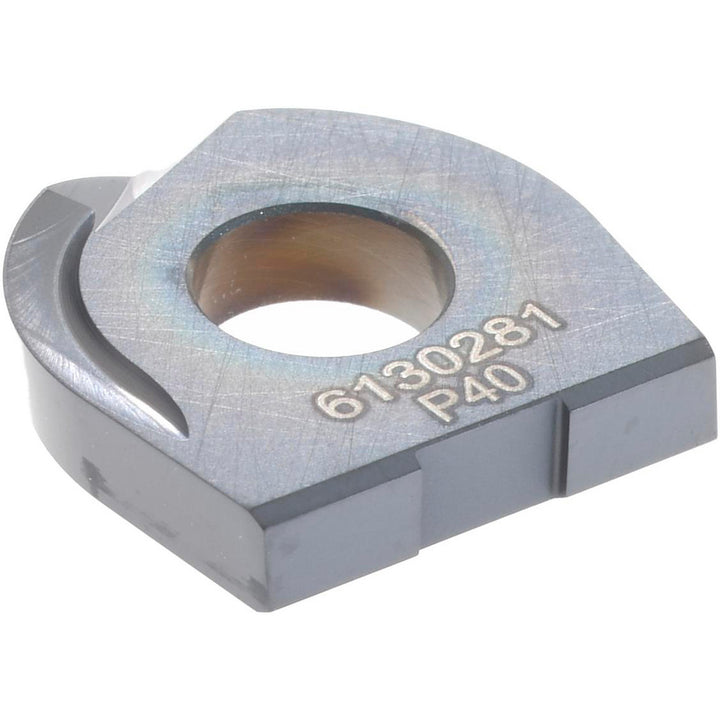

WPR 0500-CF LCP40M Solid Carbide Insert, Grade LCP40M, TiAIN - LMT 6130281
MFR# 6130281ISO/ANSI# WPR 0500-CF LCP40MSeries WPR
$48.70List $61.38
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeBall Nose Rounded Tip
GradeLCP40M
MaterialSolid Carbide
CoatingTiAIN
Description
The LMT 6130281 is a WPR 0500-CF LCP40M solid carbide indexable insert, grade LCP40M, TiAIN coated. Suited for steel.
Specifications
Ansi codeWPR 0500-CF LCP40M
Chip breakerCF
Coating finishTiAIN
Coating processPVD
Cutting edge effective length0.5000
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose Rounded Tip
Insert size05
Insert size code0500
Insert styleWPR
Iso codeWPR 0500-CF LCP40M
Manufacturers catalog number6130281
Manufacturer gradeLCP40M
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsISO
Thickness0.1000
Thickness range0.1000 to 0.1250
Width in1/2
