LMT

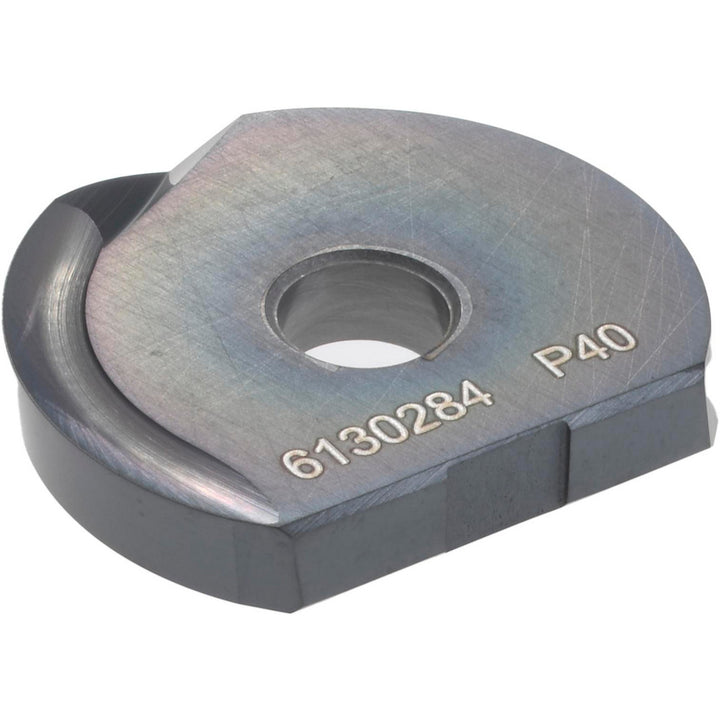

WPR 1000-CF LCP40M Solid Carbide Insert, Grade LCP40M, TiAIN - LMT 6130284
MFR# 6130284ISO/ANSI# WPR 1000-CF LCP40MSeries WPR
$82.38List $105.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeBall Nose Rounded Tip
GradeLCP40M
MaterialSolid Carbide
CoatingTiAIN
Description
The LMT 6130284 is a WPR 1000-CF LCP40M solid carbide indexable insert, grade LCP40M, TiAIN coated. Suited for steel.
Specifications
Ansi codeWPR 1000-CF LCP40M
Chip breakerCF
Coating finishTiAIN
Coating processPVD
Cutting edge effective length10.0000
Inscribed circle in1
Inscribed circle range1.0000+
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose Rounded Tip
Insert size10
Insert size code1000
Insert styleWPR
Iso codeWPR 1000-CF LCP40M
Manufacturers catalog number6130284
Manufacturer gradeLCP40M
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsISO
Thickness0.1600
Thickness range0.1500 to 0.1750
Width in1
