M.A. Ford.
0.0236" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 11102360
MFR# 11102360Series 111
$33.49List $42.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Description

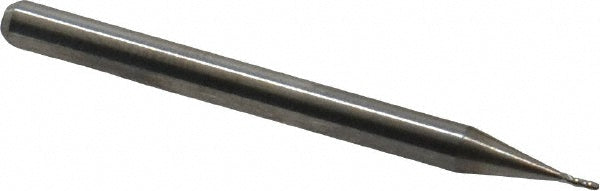

The M.A. Ford. 11102360 is a 0.0236 4-flute Solid Carbide square end mill. 0.0709 length of cut, 1-1/2 overall length. Series 111.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.0709
Length of cut range0.0000 - 0.1000
Length typeRegular
Mill diameter0.0236
Mill diameter tolerance+0.000/-0.040 mm
Number of flutes4
Overall length in1-1/2
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
