M.A. Ford.

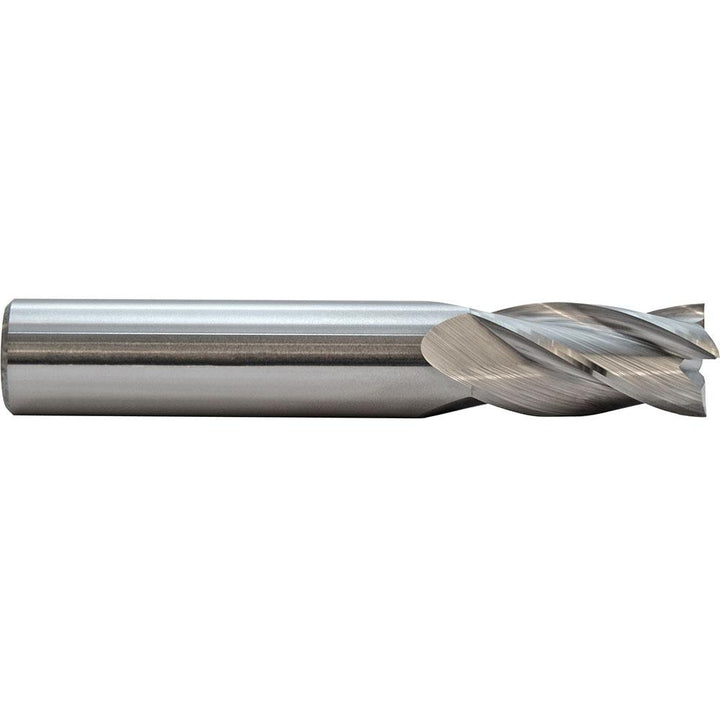

3/64" 4-Flute Solid Carbide Square End Mill, TiN - M.A. Ford. 11104680T

MFR# 11104680TSeries 111

$29.87List $38.31 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/64

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The M.A. Ford. 11104680T is a 3/64 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 7/64 length of cut, 1-1/2 overall length. Series 111.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in7/64

Length of cut range0.1000 - 0.2000

Length typeStandard

Material gradeMicrograin

Mill diameter in3/64

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes4

Overall length in1-1/2

Shank diameter in1/8

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
