3/16" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 11118750

M.A. Ford.

3/16" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 11118750

MFR# 11118750Series 111

$27.00List $34.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide

Description

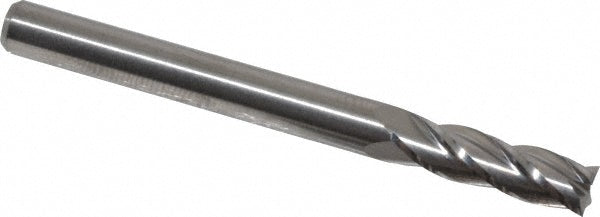

The M.A. Ford. 11118750 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 111.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
