M.A. Ford.

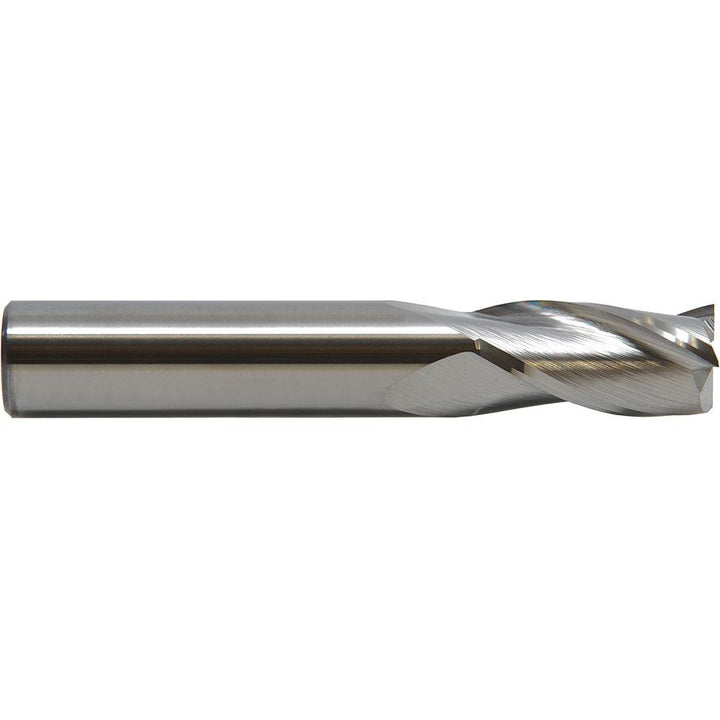

3/32" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 11609370R.010A

MFR# 11609370R.010ASeries 116

$60.85List $78.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/32

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The M.A. Ford. 11609370R.010A is a 3/32 3-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 9/32 length of cut, 1-1/2 overall length. Series 116.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0100

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleMedium

Length of cut in9/32

Length typeRegular

Manufacturers catalog number11609370R.010A

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in3/32

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes3

Overall length in1-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Reach length in9/32

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
