M.A. Ford.

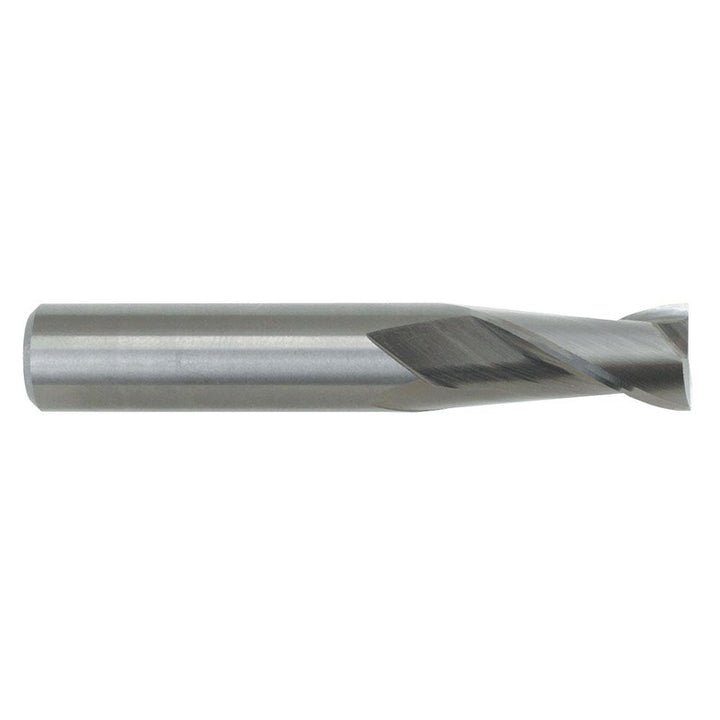

5/16" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 12131251

MFR# 12131251Series 121

$58.69List $75.27 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The M.A. Ford. 12131251 is a 5/16 2-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 13/16 length of cut, 2-1/2 overall length. Series 121.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius in1/64

Corner radius tolerance+0.00120 to -0.00120 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle30

Helix styleMedium

Length of cut in13/16

Length typeRegular

Manufacturers catalog number12131251

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing

Maximum helix angle30

Mill diameter in5/16

Mill diameter tolerance+0.0000 to -0.0030 in

Minimum helix angle30

Number of flutes2

Overall length in2-1/2

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Reach length in13/16

Shank diameter in5/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
