M.A. Ford.

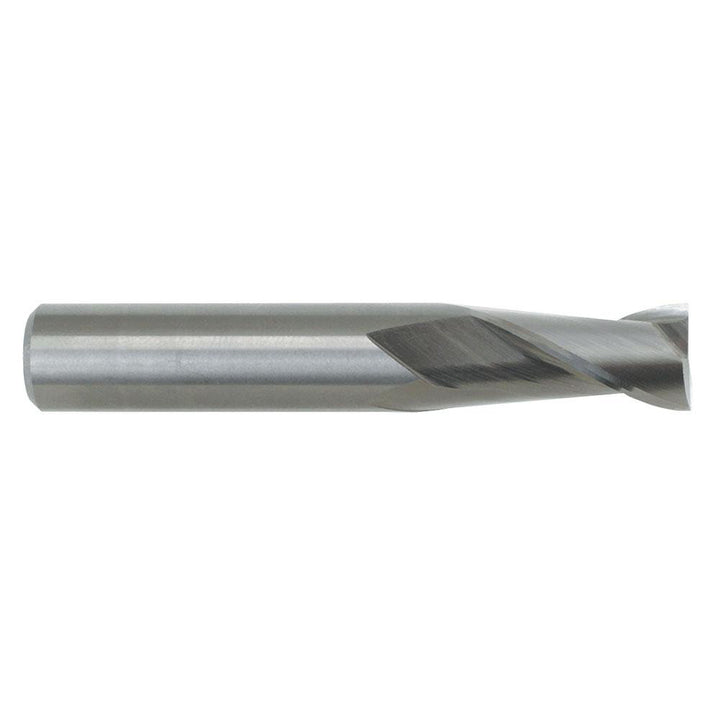

0.3150" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 12131504
MFR# 12131504Series 121
$53.28List $68.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 12131504 is a 0.3150 2-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. Series 121.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0590
Corner radius tolerance+0.0020 to -0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut0.7874
Length typeRegular
Manufacturers catalog number12131504
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing
Mill diameter0.3150
Mill diameter tolerance+0.000/-0.058 mm
Number of flutes2
Overall length (mm)64.00
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length (mm)20.00
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
