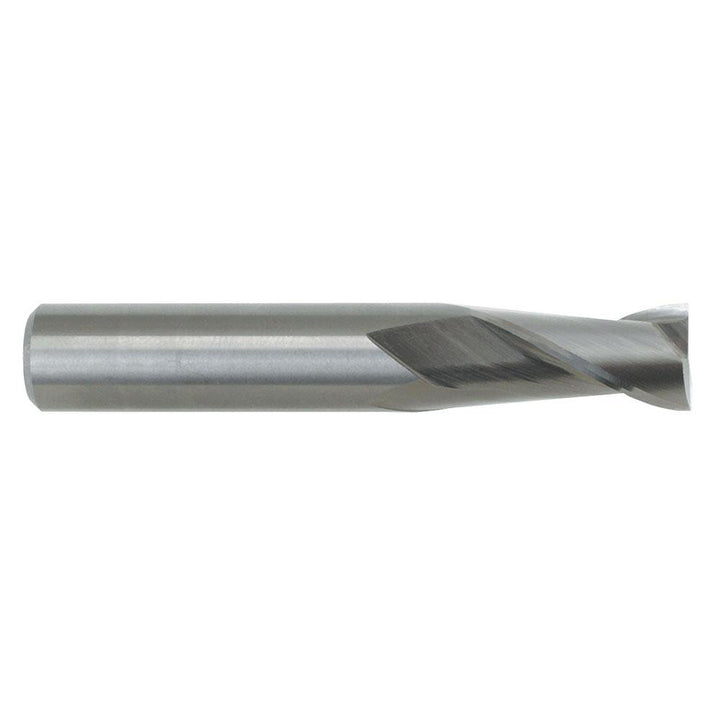

1/2" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 12150001

M.A. Ford.

1/2" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 12150001

MFR# 12150001Series 121

$143.66List $181.04 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide

Description

The M.A. Ford. 12150001 is a 1/2 2-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1 length of cut, 3 overall length. Series 121.

Specifications

CentercuttingYes
ChipbreakerNo
Coolant throughNo
Corner radius in1/64
Corner radius tolerance+0.00120 to -0.00120 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix angle30
Helix styleMedium
Length of cut in1
Length typeRegular
Manufacturers catalog number12150001
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing
Maximum helix angle30
Mill diameter in1/2
Mill diameter tolerance+0.0000 to -0.0030 in
Minimum helix angle30
Number of flutes2
Overall length in3
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length in1
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
