M.A. Ford.

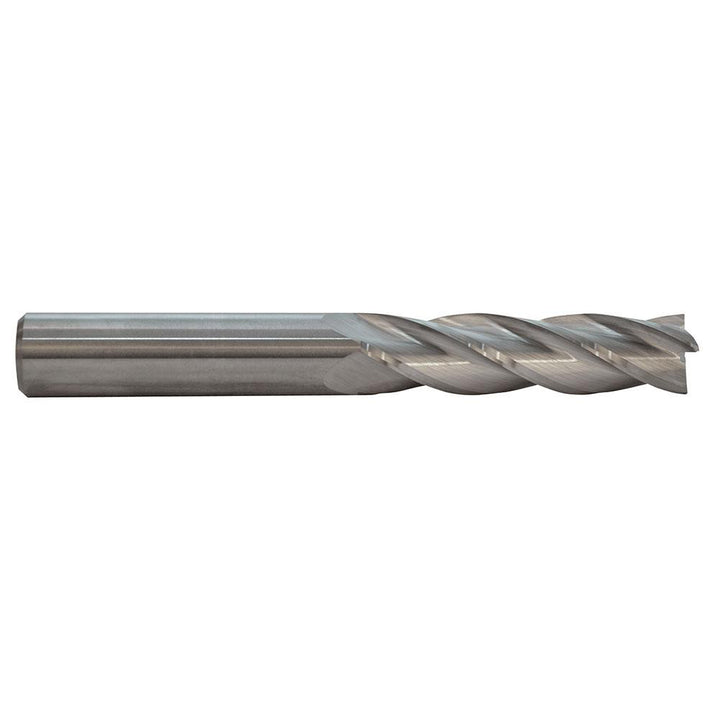

1" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 12210000
MFR# 12210000Series 122
$679.76List $856.67
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 12210000 is a 1 4-flute Solid Carbide (Micrograin) square end mill. 3 length of cut, 6 overall length. Series 122.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3
Length of cut range2.0000+
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in6
Shank diameter in1
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
