M.A. Ford.

0.4331" 4-Flute Solid Carbide Square End Mill, TiCN - M.A. Ford. 12243310C

MFR# 12243310CSeries 122

$139.81List $179.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

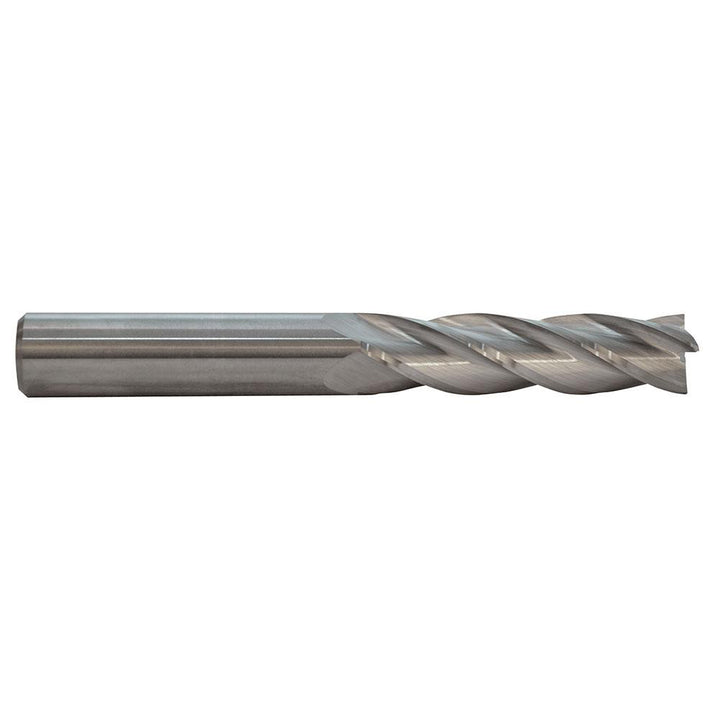

The M.A. Ford. 12243310C is a 0.4331 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 1.5748 length of cut. Series 122.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut1.5748

Length of cut range1.5000 - 2.0000

Length typeLong

Material gradeMicrograin

Mill diameter0.4331

Mill diameter tolerance+0.000/-0.076 mm

Number of flutes4

Overall length (mm)102

Shank diameter0.4331

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
