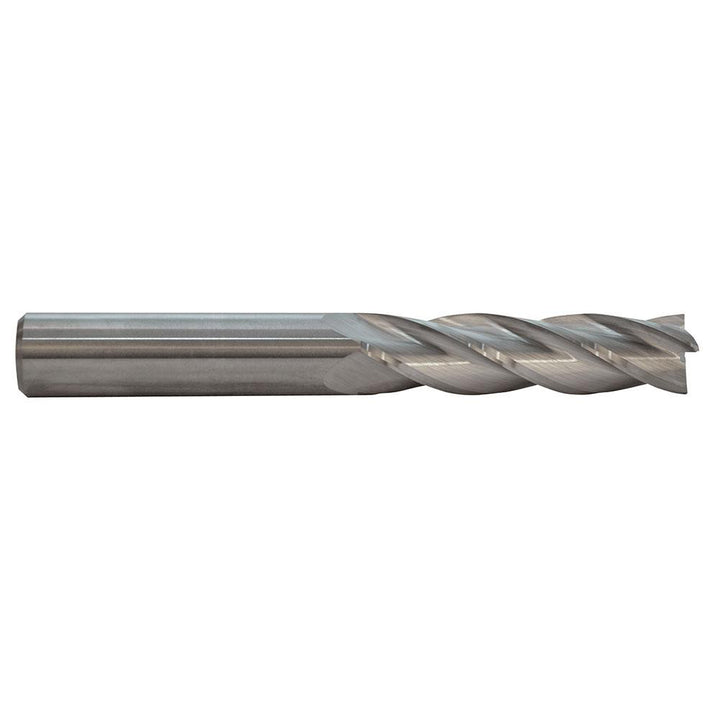

5/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 12262500

M.A. Ford.

5/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 12262500

MFR# 12262500Series 122

$260.82List $334.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The M.A. Ford. 12262500 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill. 2-1/2 length of cut, 4-5/8 overall length. Series 122.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2-1/2
Length of cut range2.0000+
Length typeExtra Long
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in4-5/8
Shank diameter in5/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
