M.A. Ford.

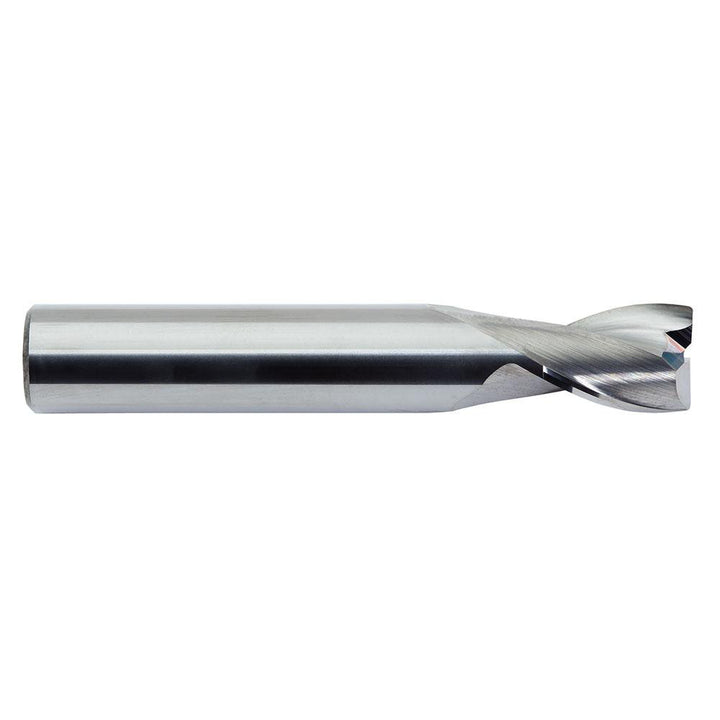

3/16" 2-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 13518750NA

MFR# 13518750NASeries 135N

$50.19List $64.38 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingALtima

Description

The M.A. Ford. 13518750NA is a 3/16 2-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. Suited for non-ferrous metal. 1/4 length of cut, 2 overall length. Series 135N.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishALtima

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/4

Length of cut range0.2000 - 0.3000

Length typeLong

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.000 to -0.002 in

Neck length0.5625

Number of flutes2

Overall length in2

Primary workpiece materialNon-Ferrous Metal

Reach length0.56

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
