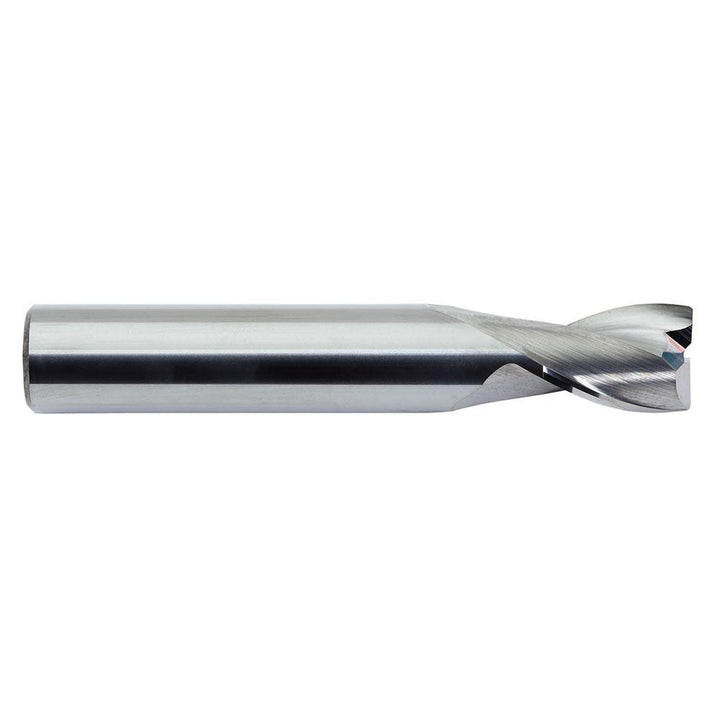

1/4in" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13525000

M.A. Ford.

1/4in" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13525000

MFR# 13525000Series 135

$56.13List $71.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The M.A. Ford. 13525000 is a 1/4in 2-flute Solid Carbide (Micrograin) corner radius end mill. Suited for non-ferrous metal. 5/16in length of cut, 2-1/2in overall length. Series 135.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0110
Corner radius tolerance+0.0020 to -0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in5/16in
Length typeRegular
Manufacturers catalog number13525000
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes2
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in5/16
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
