M.A. Ford.

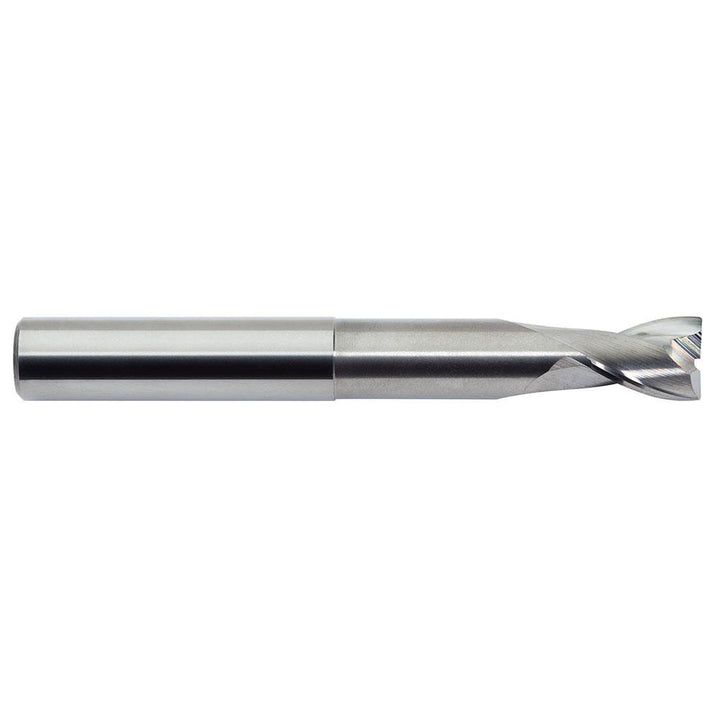

3/4" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13575000N

MFR# 13575000NSeries 135

$447.11List $573.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The M.A. Ford. 13575000N is a 3/4 2-flute Solid Carbide (Micrograin) corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 4 overall length. Series 135.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0300

Corner radius tolerance+0.0020 to -0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle30

Helix styleMedium

Length of cut in1

Length typeRegular

Manufacturers catalog number13575000N

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Maximum helix angle30

Mill diameter in3/4

Mill diameter tolerance+0.0000 to -0.0030 in

Minimum helix angle30

Neck diameter0.7500

Number of flutes2

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in1-7/8

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
