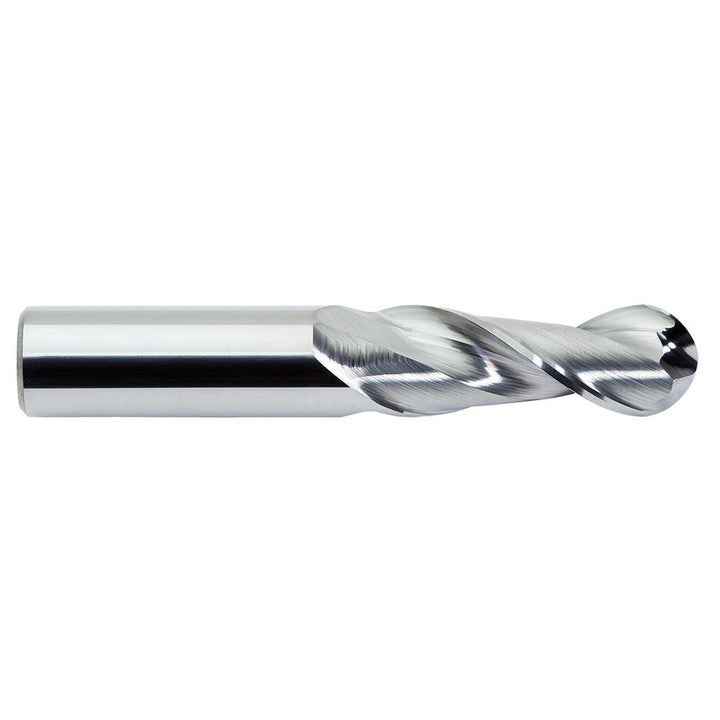

3/8" 2-Flute Solid Carbide Ball End Mill - M.A. Ford. 135B37501

M.A. Ford.

3/8" 2-Flute Solid Carbide Ball End Mill - M.A. Ford. 135B37501

MFR# 135B37501Series 135B

$86.49List $110.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide

Description

The M.A. Ford. 135B37501 is a 3/8 2-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 1 length of cut, 2-1/2 overall length. Series 135B.

Specifications

ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance+0.000/0.003 in
Nose radius0.1875
Number of flutes2
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter toleranceh6
Single or double endSingle
Variable helixNo
Variable indexNo
