M.A. Ford.

1/4" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13625006

MFR# 13625006Series 136

$62.07List $79.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

Description

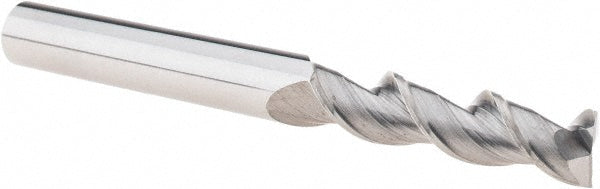

The M.A. Ford. 13625006 is a 1/4 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1 length of cut, 2-1/2 overall length. Series 136.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeExtra Long

Mill diameter in1/4

Mill diameter tolerance+0.000/-0.002 in

Number of flutes2

Overall length in2-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
