M.A. Ford.

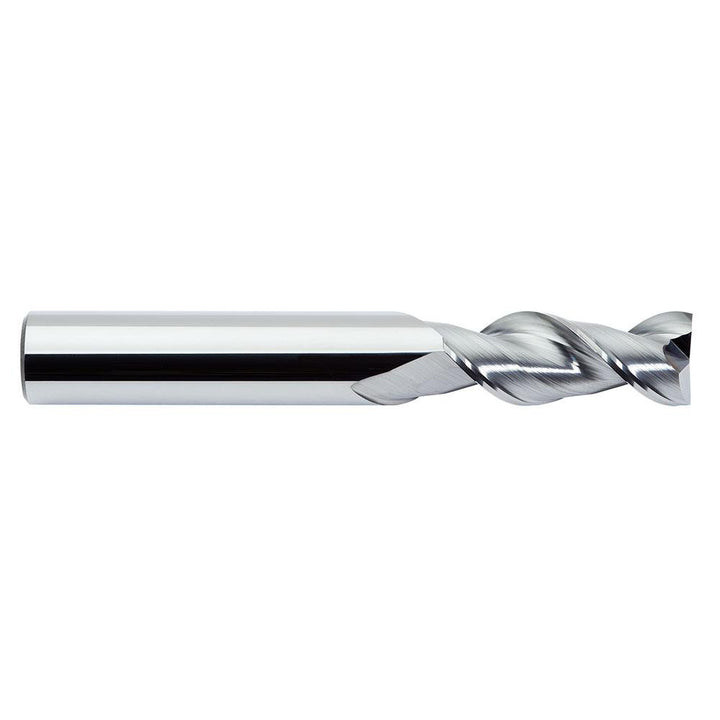

3/8" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13637502
MFR# 13637502Series 136
$137.45List $176.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 13637502 is a 3/8 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 2-1/2 length of cut, 4-1/4 overall length. Series 136.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Length of cut in2-1/2
Length of cut range2.0000+
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000 to -0.003 in
Number of flutes2
Overall length in4-1/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
