M.A. Ford.

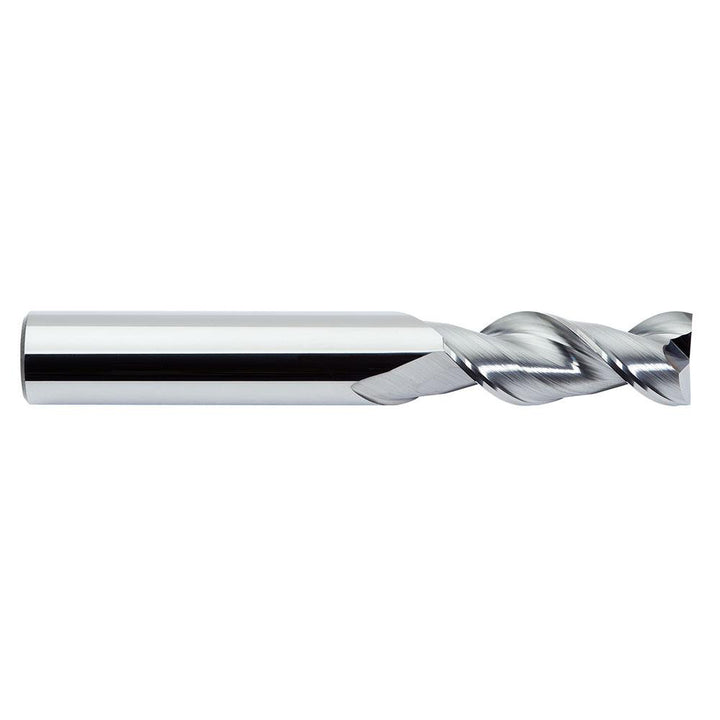

1/2in" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13650000R.125
MFR# 13650000R.125Series 136
$187.36List $236.11
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 13650000R.125 is a 1/2in 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1-1/4in length of cut, 3-1/2in overall length. Series 136.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.1250
Corner radius tolerance+0.00200 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1-1/4in
Length typeRegular
Manufacturers catalog number13650000R.125
Material applicationNon-Ferrous Metal
Material removal typeFinishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0030 in
Number of flutes2
Overall length in3-1/2in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/4
Shank diameter in1/2in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
