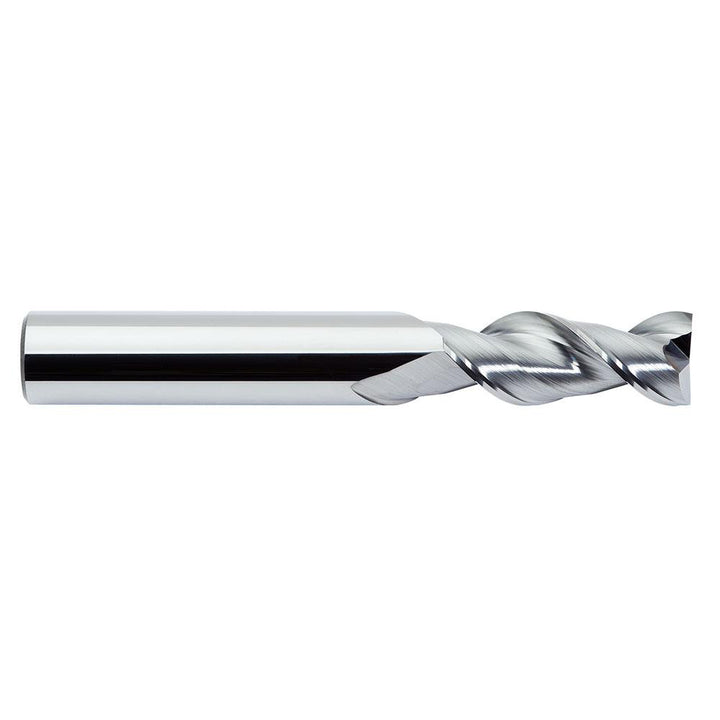

1/2" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13650002

M.A. Ford.

1/2" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13650002

MFR# 13650002Series 136

$294.86List $371.59 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The M.A. Ford. 13650002 is a 1/2 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 3 length of cut, 5 overall length. Series 136.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Length of cut in3
Length of cut range2.0000+
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000 to -0.003 in
Number of flutes2
Overall length in5
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
