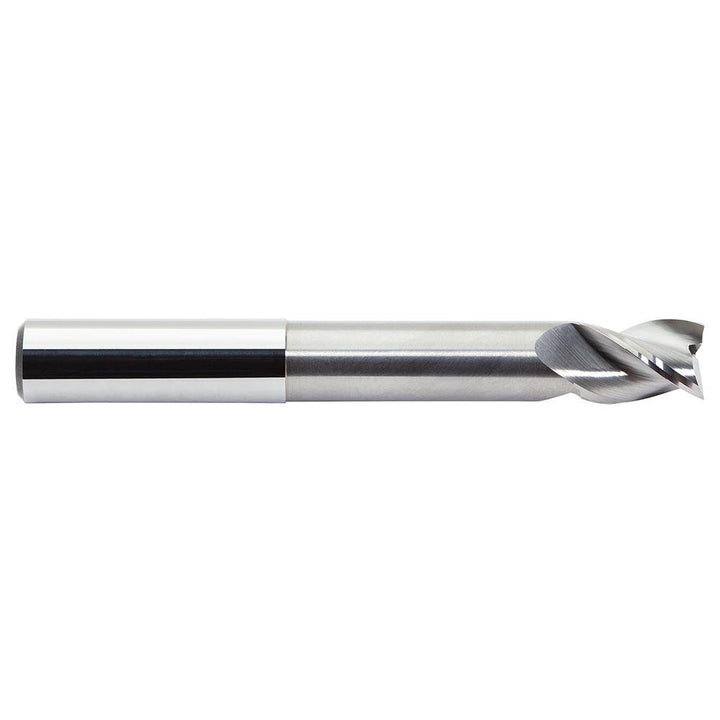

1/8" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13812509N

M.A. Ford.

1/8" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13812509N

MFR# 13812509NSeries 138N

$39.28List $49.51 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The M.A. Ford. 13812509N is a 1/8 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 3/16 length of cut, 2 overall length. Series 138N.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle36
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.0000 to -0.0005 in
Neck length0.75
Number of flutes3
Overall length in2
Primary workpiece materialNon-Ferrous Metal
Reach length0.75
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
