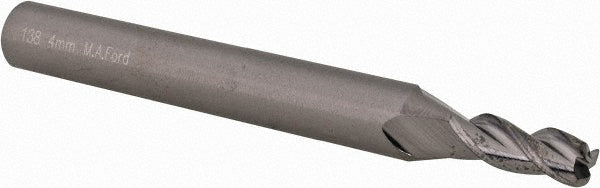

0.1575in" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13815750R.039
MFR# 13815750R.039Series 138
$61.32List $77.27
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 13815750R.039 is a 0.1575in 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. Series 138.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0390
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut0.7500in
Length typeRegular
Manufacturers catalog number13815750R.039
Material applicationNon-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter0.1575in
Mill diameter tolerance+0.000/-0.013 mm
Number of flutes3
Overall length (mm)55.00mm
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Reach length (mm)11.00
Shank diameter (mm)6.00mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
