M.A. Ford.

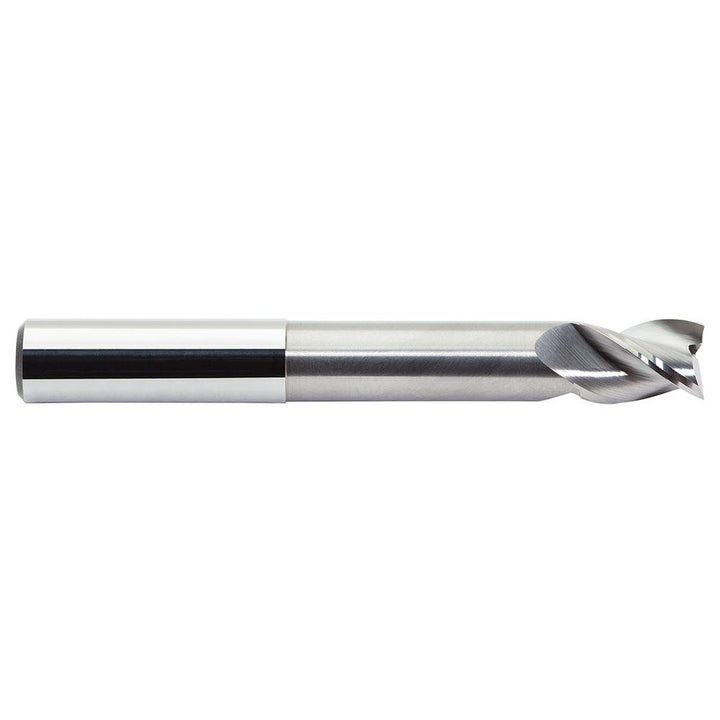

1/4" 3-Flute Solid Carbide Square End Mill, TiB2 - M.A. Ford. 13825002NF

Name: 1/4" 3-Flute Solid Carbide Square End Mill, TiB2 - M.A. Ford. 13825002NF
Brand: M.A. Ford.
SKU: 13825002NF
Price: 150.39 USD
Availability: InStock

MFR# 13825002NFSeries 138N

$150.39List $189.52 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The M.A. Ford. 13825002NF is a 1/4 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 1/2 length of cut, 4 overall length. Series 138N.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle36

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.000 to -0.0005 in

Neck length1.125

Number of flutes3

Overall length in4

Primary workpiece materialNon-Ferrous Metal

Reach length1.13

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
