M.A. Ford.

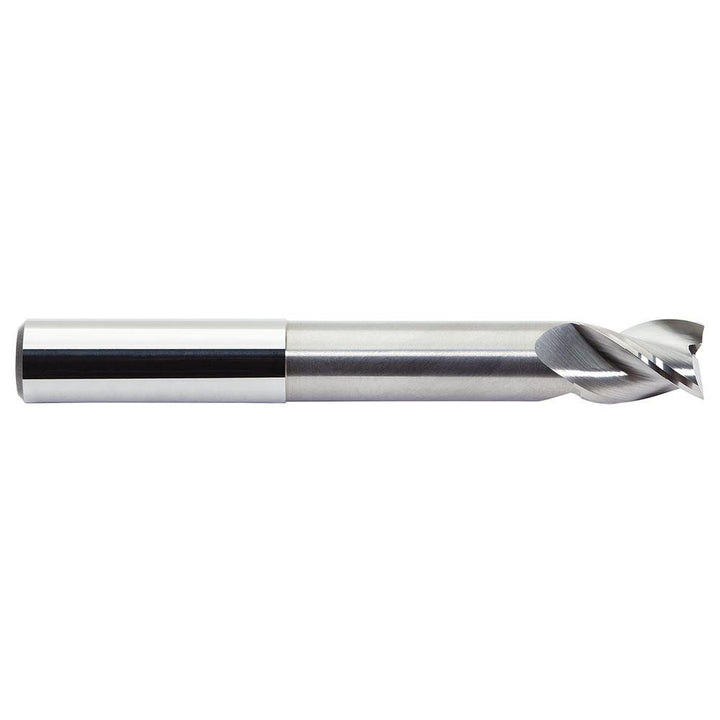

1/4" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13825012N

MFR# 13825012NSeries 138N

$114.18List $146.44 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 13825012N is a 1/4 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1/2 length of cut, 4 overall length. Series 138N.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle36

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeStub

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.0000 to -0.0005 in

Neck length2.125

Number of flutes3

Overall length in4

Primary workpiece materialNon-Ferrous Metal

Reach length2.13

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
