3/8in" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13837507R.125

M.A. Ford.

3/8in" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13837507R.125

MFR# 13837507R.125Series 138

$165.13List $211.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

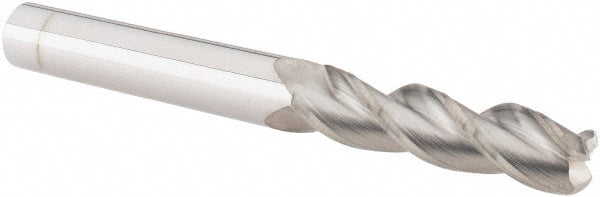

The M.A. Ford. 13837507R.125 is a 3/8in 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1-1/2in length of cut, 3-1/2in overall length. Series 138.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.1250
Corner radius tolerance+0.0008 to -0.0008 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-1/2in
Length typeLong
Manufacturers catalog number13837507R.125
Material applicationNon-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance+0.0000/-0.0005 in
Number of flutes3
Overall length in3-1/2in
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/2
Shank diameter in3/8in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
