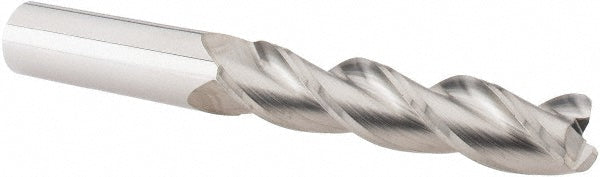

1/2in" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13850006R.0625
MFR# 13850006R.0625Series 138
$146.51List $184.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 13850006R.0625 is a 1/2in 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 2-1/4in length of cut, 4in overall length. Series 138.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0625
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in2-1/4in
Length typeExtra Long
Manufacturers catalog number13850006R.0625
Material applicationNon-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0005 in
Number of flutes3
Overall length in4in
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Reach length in2-1/4
Shank diameter in1/2in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
