M.A. Ford.

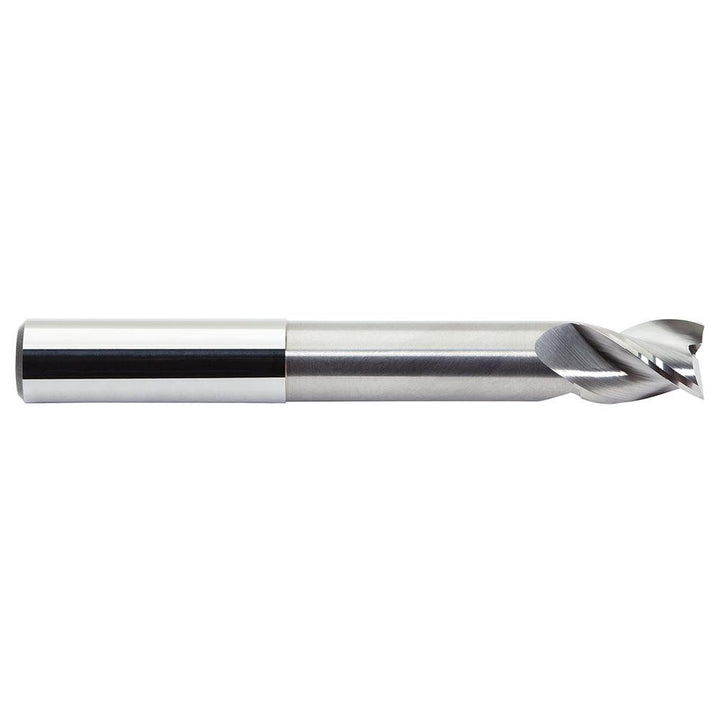

1/2in" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13850013NR.030
MFR# 13850013NR.030Series 138
$254.33List $320.52
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 13850013NR.030 is a 1/2in 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 3/4in length of cut, 6in overall length. Series 138.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3/4in
Length typeShort
Manufacturers catalog number13850013NR.030
Material applicationNon-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0005 in
Neck diameter0.5000in
Number of flutes3
Overall length in6in
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Reach length in4-3/8
Shank diameter in1/2in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
