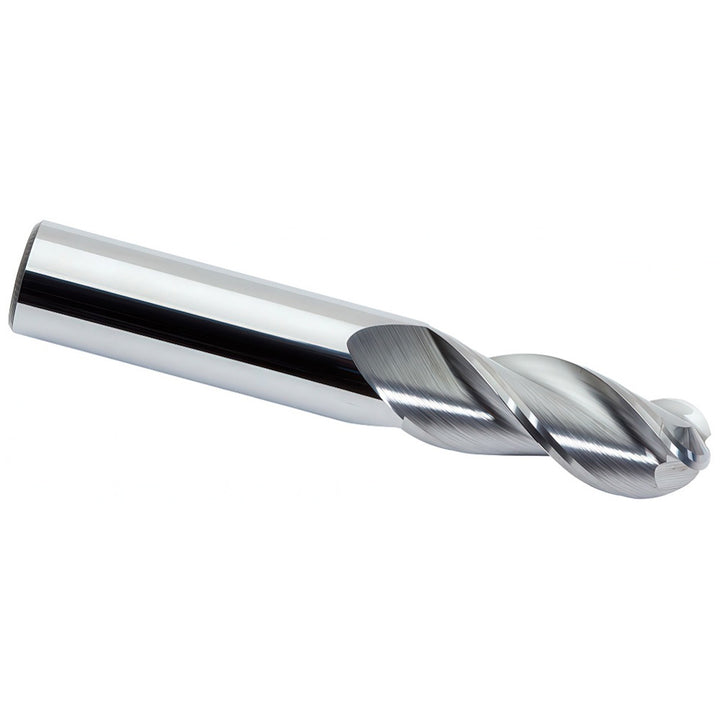

5/16" 3-Flute Solid Carbide Ball End Mill - M.A. Ford. 138B31251

MFR# 138B31251Series 138B

$75.27List $96.53 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The M.A. Ford. 138B31251 is a 5/16 3-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 13/16 length of cut, 2-1/2 overall length. Series 138B.

Specifications

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle36

Length of cut in13/16

Length typeRegular

Mill diameter in5/16

Mill diameter tolerance+0.000 to 0.005 in

Nose radius0.1562

Number of flutes3

Overall length in2-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/16

Shank diameter toleranceh6

Single or double endSingle

Variable helixNo

Variable indexNo
