OSG

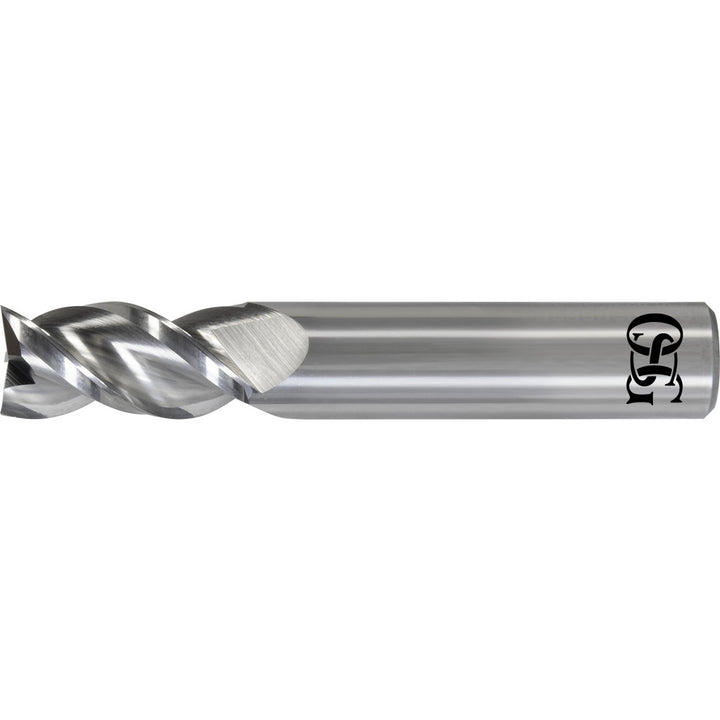

5/16" 3-Flute Solid Carbide Square End Mill - OSG VGM3-0015
MFR# VGM3-0015Series VGM3-AL
$46.62List $58.76
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG VGM3-0015 is a 5/16 3-flute Solid Carbide square end mill. Suited for aluminum & non-ferrous. 13/16 length of cut, 2-1/2 overall length. Series VGM3-AL.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40-43
Length of cut in13/16
Length typeRegular
Material gradeSolid Carbide
Mill diameter in5/16
Mill diameter tolerance+0 / -0.0004
Number of flutes3
Overall length in2-1/2
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in5/16
Shank diameter toleranceh6
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexYes
