M.A. Ford.

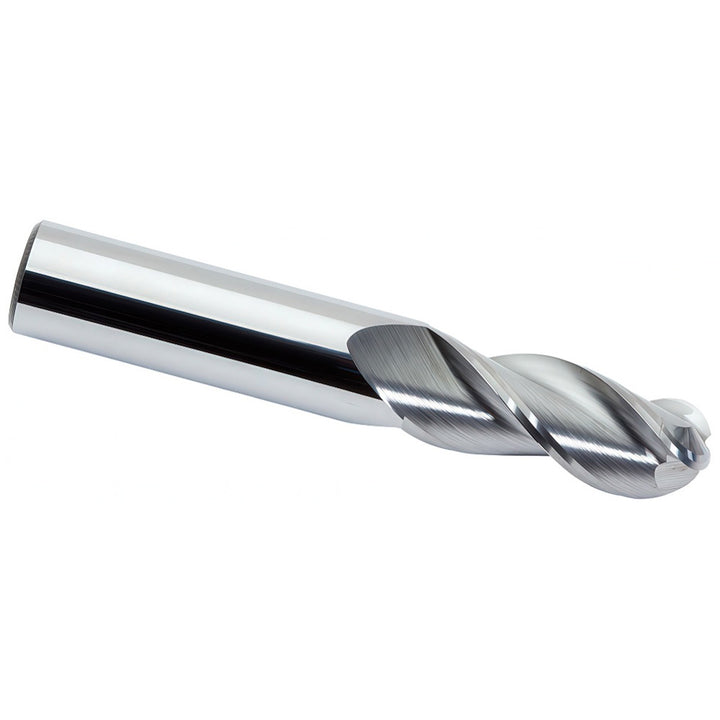

3/4" 3-Flute Solid Carbide Ball End Mill - M.A. Ford. 138B75001

MFR# 138B75001Series 138B

$385.15List $493.97 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The M.A. Ford. 138B75001 is a 3/4 3-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 4 overall length. Series 138B.

Specifications

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle36

Length of cut in1-5/8

Length typeRegular

Mill diameter in3/4

Mill diameter tolerance+0.000 to 0.005 in

Nose radius0.3750

Number of flutes3

Overall length in4

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/4

Shank diameter toleranceh6

Single or double endSingle

Variable helixNo

Variable indexNo
