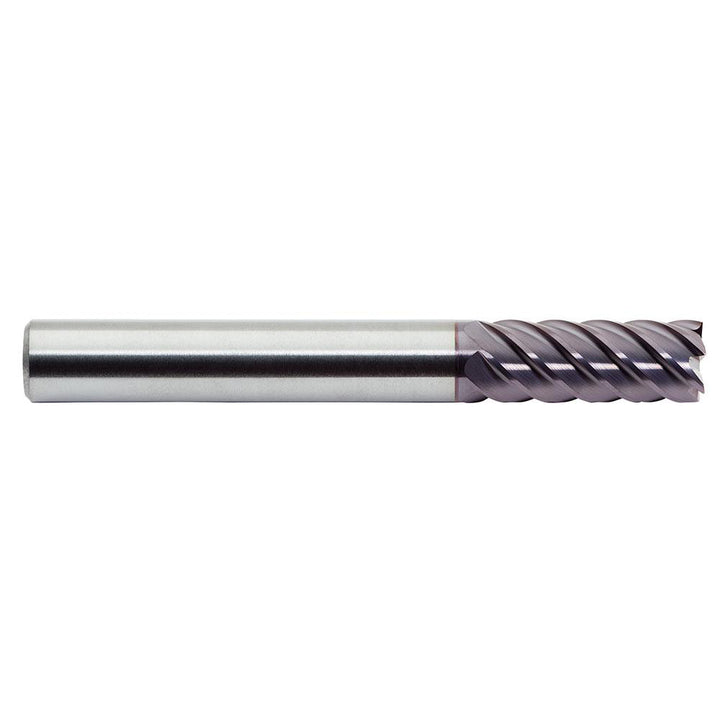

3/16in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima 52 - M.A. Ford. 15718751A

M.A. Ford.

3/16in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima 52 - M.A. Ford. 15718751A

MFR# 15718751ASeries 157

$134.57List $172.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes4
MaterialSolid Carbide
CoatingALtima 52

Description

The M.A. Ford. 15718751A is a 3/16in 4-flute Solid Carbide corner radius end mill with a ALtima 52 finish for longer tool life. Suited for hard material. 9/16in length of cut, 3in overall length. Series 157.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima 52
Coolant throughNo
Corner radius0.0150
Corner radius tolerance+0.0012 to -0.0012 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in9/16in
Length typeRegular
Manufacturers catalog number15718751A
Material applicationHard Material
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in3in
PitchNormal
Primary workpiece materialHard Material
Reach length in9/16
Shank diameter in1/4in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
