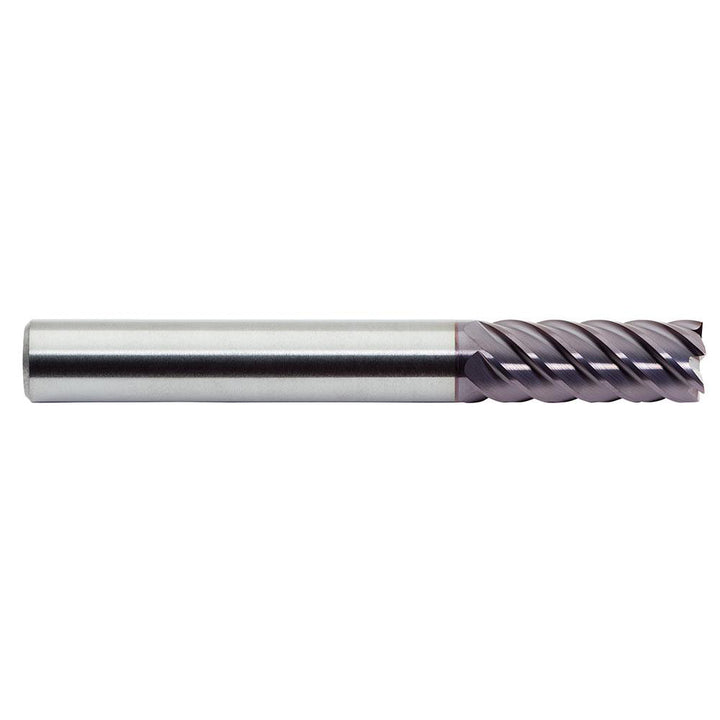

3/8in" 6-Flute Solid Carbide Corner Radius End Mill, ALtima 52 - M.A. Ford. 15737501A

M.A. Ford.

3/8in" 6-Flute Solid Carbide Corner Radius End Mill, ALtima 52 - M.A. Ford. 15737501A

MFR# 15737501ASeries 157

$230.25List $295.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes6
MaterialSolid Carbide
CoatingALtima 52

Description

The M.A. Ford. 15737501A is a 3/8in 6-flute Solid Carbide corner radius end mill with a ALtima 52 finish for longer tool life. Suited for hard material. 1in length of cut, 4in overall length. Series 157.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima 52
Coolant throughNo
Corner radius0.0150
Corner radius tolerance+0.0012 to -0.0012 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1in
Length typeRegular
Manufacturers catalog number15737501A
Material applicationHard Material
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance+0.0000/-0.0030 in
Number of flutes6
Overall length in4in
PitchClose
Primary workpiece materialHard Material
Reach length in1
Shank diameter in3/8in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
