5/8in" 6-Flute Solid Carbide Corner Radius End Mill, ALtima 52 - M.A. Ford. 15762501A

M.A. Ford.

5/8in" 6-Flute Solid Carbide Corner Radius End Mill, ALtima 52 - M.A. Ford. 15762501A

MFR# 15762501ASeries 157

$608.70List $780.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8in
Flutes6
MaterialSolid Carbide
CoatingALtima 52

Description

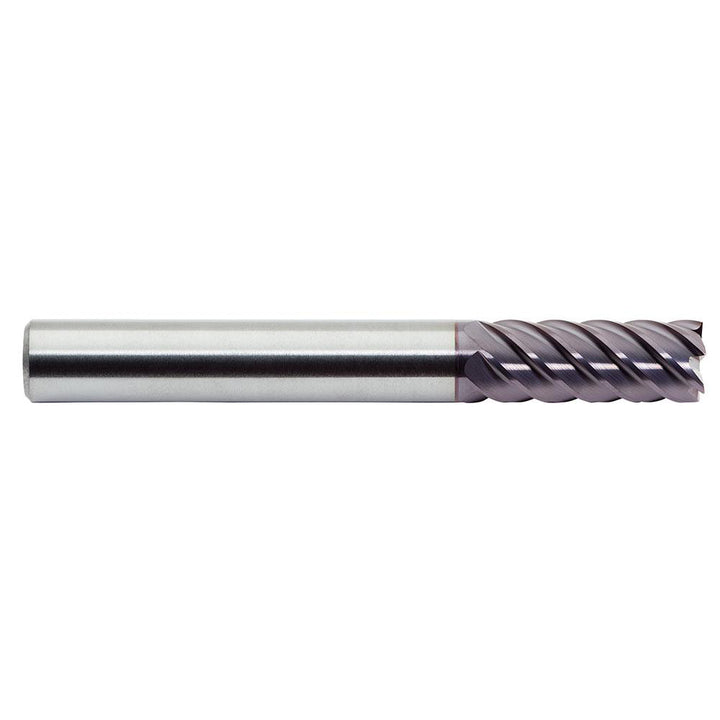

The M.A. Ford. 15762501A is a 5/8in 6-flute Solid Carbide corner radius end mill with a ALtima 52 finish for longer tool life. Suited for hard material. 1-9/16in length of cut, 6in overall length. Series 157.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima 52
Coolant throughNo
Corner radius0.0150
Corner radius tolerance+0.0012 to -0.0012 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1-9/16in
Length typeRegular
Manufacturers catalog number15762501A
Material applicationHard Material
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance+0.0000/-0.0030 in
Number of flutes6
Overall length in6in
PitchClose
Primary workpiece materialHard Material
Reach length in1-9/16
Shank diameter in5/8in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
