M.A. Ford.

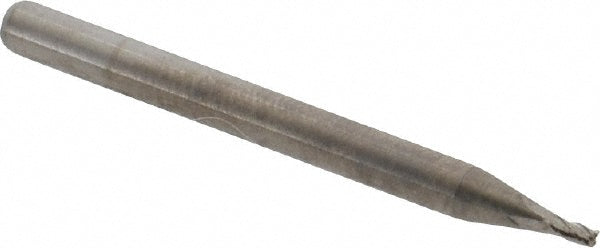

3/64" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 16304680
MFR# 16304680Series 163
$24.01List $30.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/64
Flutes4
MaterialSolid Carbide
Description
The M.A. Ford. 16304680 is a 3/64 4-flute Solid Carbide (Micrograin) square end mill. 3/32 length of cut, 1-1/2 overall length. Series 163.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/32
Length of cut range0.0000 - 0.1000
Length typeStub
Material gradeMicrograin
Mill diameter in3/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
