M.A. Ford.

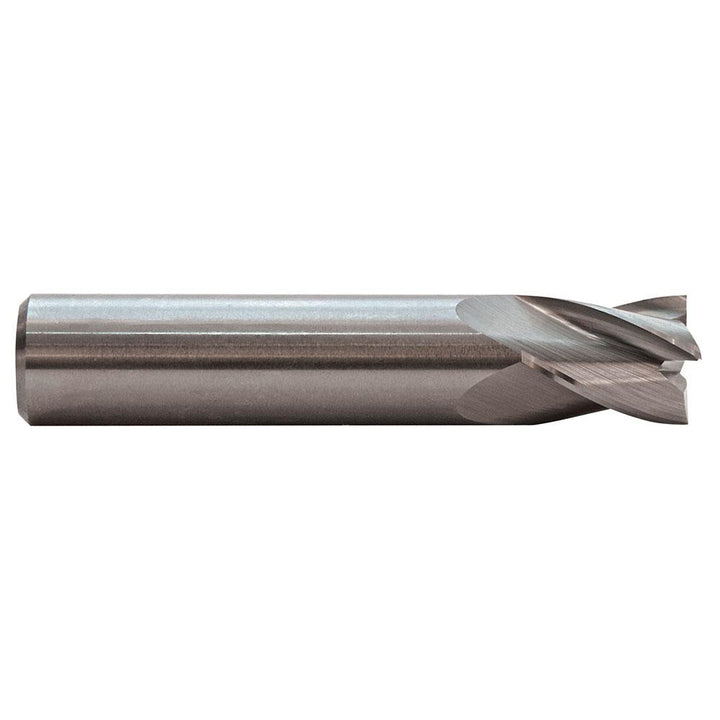

1/8" 4-Flute Solid Carbide Square End Mill, TiN - M.A. Ford. 16312500T

MFR# 16312500TSeries 163

$19.97List $25.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The M.A. Ford. 16312500T is a 1/8 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 1/4 length of cut, 1-1/2 overall length. Series 163.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in1/4

Length of cut range0.2000 - 0.3000

Length typeStub

Material gradeMicrograin

Mill diameter in1/8

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes4

Overall length in1-1/2

Shank diameter in1/8

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
