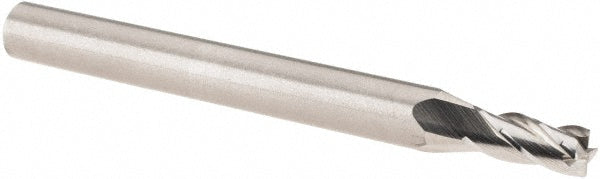

9/64in" 4-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 16314060R.010

M.A. Ford.

9/64in" 4-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 16314060R.010

MFR# 16314060R.010Series 163

$40.49List $51.03 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The M.A. Ford. 16314060R.010 is a 9/64in 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 5/16in length of cut, 2in overall length. Series 163.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in5/16in
Length typeShort
Manufacturers catalog number16314060R.010
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in9/64in
Mill diameter tolerance+0.0000/-0.0030 in
Number of flutes4
Overall length in2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length in5/16
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
