M.A. Ford.

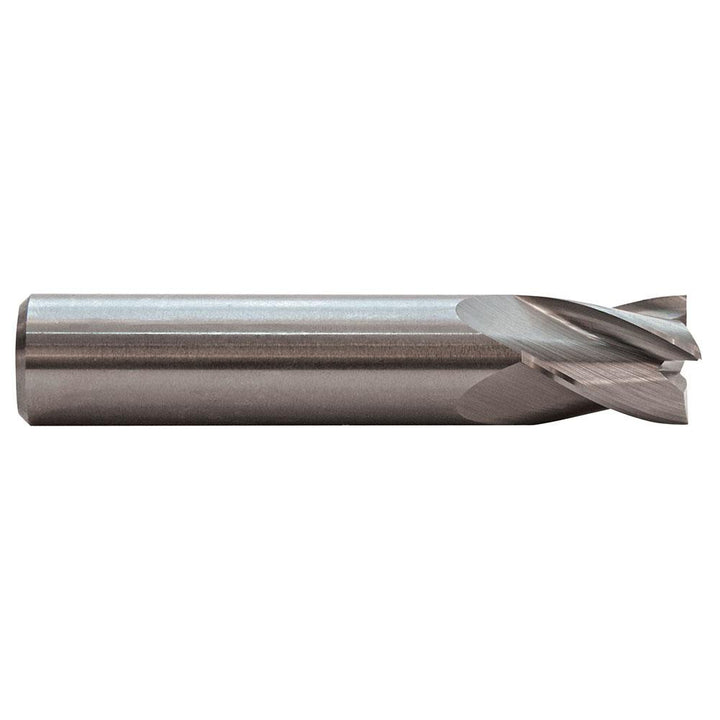

11/64" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 16317180
MFR# 16317180Series 163
$29.97List $38.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter11/64
Flutes4
MaterialSolid Carbide
Description
The M.A. Ford. 16317180 is a 11/64 4-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 2 overall length. Series 163.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in11/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
